CCR1036-8G-2S+

Se el primero en opinar

Disponibilidad: En Stock

Descripción

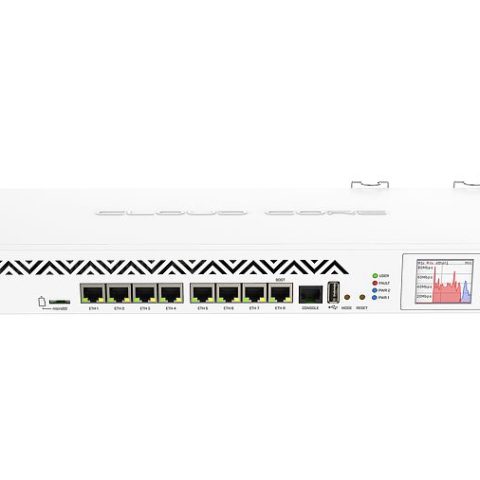

MIKROTIK CCR1036-8G-2S+

CCR1036-8G-2S+ Cloud Core Router, Tilera Tile-Gx36 CPU (36-cores, 1.2Ghz per core), 4GB RAM, 2xSFP+ cage, 8xGbit LAN, RouterOS L6, 1U rackmount case, PSU, LCD panel

Precio Total Cantidad

$1,705.90

MIKROTIK CCR1036-8G-2S+

Our fastest router has now become even better – the new CCR1036-8G-2S+ now has two SFP+ ports for 10G interface support (SFP+ module available separately). It uses the same 36 core Tilera CPU as our other CCR1036 model, and delivers the same performance, but now, ten gigabit links are possible.

The device comes in a 1U rackmount case, has two SFP+ ports, eight Gigabit ethernet ports, a serial console cable and a USB port.

The CCR1036-8G-2S+ has two SODIMM slots, by default it is shipped with 4GB of RAM, but has no memory limit in RouterOS (will accept and utilize 16GB or more). Also available now, the EM model with 16GB of RAM!

Supports both SFP (1.25G) and SFP+ (10G) modules

Details

Product code CCR1036-8G-2S+
CPU nominal frequency 1.2GHz
SFP DDMI Yes
CPU core count 36
Architecture TILE
Size of RAM 4
10/100 Ethernet ports 0
10/100/1000 Ethernet ports 8
MiniPCI slots 0
Number of USB ports 1
Memory Cards 1
Memory card type microSD
Power Jack C14
Voltage Monitor Yes
CPU temperature monitor Yes
PCB temperature monitor Yes
Dimensions 355x145mm55mm
Operating System RouterOS
Temperature range -30C to +60C
License level L6
Current Monitor Yes
CPU Tile-Gx36
SFP ports 2

Performance test results

CCR1036-8G-2S+

RouterOS v6.x

Mode

Configuration

64 byte

512 byte

1518 byte

kpps

Mbps

kpps

Mbps

kpps

Mbps

Bridging

fast path

41636

27313.2

6574

27873.8

2274

27942.9

Bridging

25 Bridge filter rules

5817

3816.0

5630

23871.2

2274

27942.9

Routing

fast path

41636

27313.2

6574

27873.8

2274

27942.9

Routing

25 Simple Queues

7782

5105.0

6574

27873.8

2274

27942.9

Routing

25 Firewall filter rules

3081

2021.1

2796

11855.0

2274

27942.9
