CCR1036-12G-4S-EM

Se el primero en opinar

Disponibilidad: En Stock

Descripción

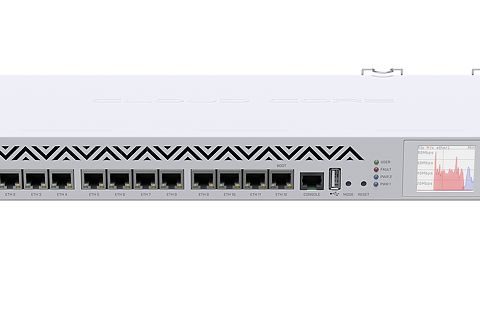

MIKROTIK CCR1036-12G-4S-EM

CCR1036-12G-4S-EM Cloud Core Router, Tilera Tile-Gx36 CPU (36-cores, 1.2Ghz per core), 16GB RAM, 4xSFP cage, 12xGbit LAN, RouterOS L6, 1U rackmount case, PSU, LCD panel

Precio Total Cantidad

$1,738.90

MIKROTIK CCR1036-12G-4S-EM

CCR1036-12G-4S-EM is an carrier grade router with a cutting edge 36 core Tilera CPU! Unprecedented power and unbeatable performance – this is our new flagship device. Over 20 times faster than our previous top model, the Cloud Core supports throughput of up to 24 million packets per second, or up to 16 gigabits – full wire speed.

The device comes in a 1U rackmount case, has four SFP ports, twelve Gigabit ethernet ports, serial console and a USB port. A color touchscreen displays device status, traffic graphs, or provide access to simple configuration options.

It has two SODIMM slots, by default it is shipped with 16GB of RAM, but has no memory limit in RouterOS. It comes with power supply and 1U rackmount case.

The cloud core router is powered by RouterOS, a fully featured routing operating system which has been continuously improved for fifteen years. Dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing and bonding, real-time configuration and monitoring – just a few of the vast number of features supported by RouterOS.

Tested and recommended to use with MikroTik SFP modules: S-85DLC05D, S-31DLC20D and S-35/53LC20D (not included)

Details

Product code CCR1036-12G-4S-EM
CPU nominal frequency 1.2GHz
SFP DDMI Yes
CPU core count 36
Architecture Tile GX
Size of RAM 16GB
10/100 Ethernet ports 12
10/100/1000 Ethernet ports Yes
MiniPCI slots 0
Wireless chip model No
Number of USB ports Yes
Power Jack IEC C14 standard connector 110/220V (PSU included)
PoE No
Voltage Monitor Yes
PCB temperature monitor Yes
CPU temperature monitor Yes
Dimensions 355x145x55cm
Operating System RouterOS v6 (64bit)
Temperature range Max ambient temperature 50C @1.2Ghz; 70C @1Ghz CPU core frequency
License level L6
Current Monitor Yes
CPU Tilera Tile-Gx36
Max Power consumption 60W
SFP ports 4



CCR1036-12G-4S-EM

RouterOS v6.0rc4

Mode

Configuration

64 byte

512 byte

1518 byte

kpps

Mbps

kpps

Mbps

kpps

Mbps

Bridging

none (fast path)

23808

15618.0

3759

15938.2

1300

15974.4

Bridging

25 Bridge filter rules

7340

4815.0

3759

15938.2

1300

15974.4

Routing

none (fast path)

23808

15618.0

3759

15938.2

1300

15974.4
