NVR4108H

Se el primero en opinar

Disponibilidad: En Stock

Descripción

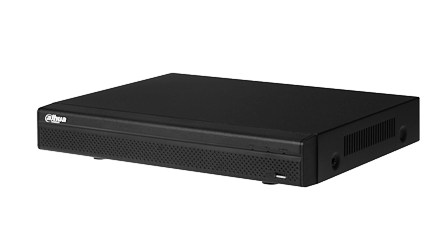

DAHUA NVR4108H

NVR4108H NVR 8CH | Hasta 5MP | TASA Bits 80Mbps | Salida HDMI/VGA | 1 HDD | P2P | ONVIF Soporta 8ch IP • Resolución de Grabación: 5MP, 3MP, 2MP, 1MP, D1• Reproduce 8ch en 1080p • Tasa Bits de Grabación: 80 Mbps • Compresion: H.264/MPEJ4• Soporta 1 SATA HDD hasta 4 TB, 2 USB 2.0 • Salida: HDMI/VGA• 01 Entrada de red 10/100Mbps • Soporta conexión P2P• Función Pentaplex: En Vivo, graba, reproduce, backup, transmite• Visualizacion por smartphone: Iphone, Android , Windows

Precio Total Cantidad

$123.20

DAHUA NVR4108H

  • Up to 8 channel IP camera input
  • Max 80Mbps incoming bandwidth
  • H.264/MJPEG dual codec decoding
  • Up to 5Mp resolution preview & playback
  • HDMI/VGA simultaneous video output
  • All channel synchronous realtime playback, GRID interface & smart search
  • Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc.
  • ONVIF Version 2.4 conformance
  • 3D intelligent positioning with Dahua PTZ camera
  • Support 1 SATA HDD up to 4TB, 2 USB2.0
  • Support IPC UPnP,
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMS
Model DH-NVR4108H-8P DH-NVR4116H-8P
System
Main Processor Dual-core embedded processor
Operating System Embedded LINUX
Video & Audio
IP Camera Input 8 channel 16 channel
Two-way Talk 1 channel Input, 1 channel Output, RCA
Display
Interface 1 HDMI, 1 VGA
Resolution 1920×1080, 1280×1024, 1280×720, 1024×768
Display Split 1/4/8/9 1/4/8/9/16
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Compression H.264/MJPEG
Resolution 5Mp(2560×1920)/3Mp(2048×1536)/1080P(1920×1080)/720P(1280×720)/D1 (704×576/704×480)
Record Rate 80Mbps
Bit Rate 48~ 8192kbps
Record Mode Manual, Schedule(Regular(Continuous), MD, Alarm), Stop
Record Interval 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection & Alarm
Trigger Events Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Buzzer & Screen tips
Video Detection Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
Alarm Input 2 channel
Relay Output 1 channel
Playback & Backup
Sync Playback 1/4/8 1/4/8/16
Search Mode Time/Date, Alarm, MD & Exact search (accurate to second), Smart search
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode USB Device/Network/Internal SATA burner
Network
Ethernet 1 RJ-45 port (10/100Mbps)
PoE 8 ports (IEEE802.3af/at)
Network Function HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.), SNMP, P2P
Max. User Access 128 users
Smart Phone iPhone, iPad, Android
Storage
Internal HDD 1 SATA port, up to 4TB
Auxiliary Interface
USB 2 ports, USB2.0
General
Power Supply Single, DC48V/2A
Power Consumption NVR: 10W(without HDD)
PoE:Max.25.5W (for one port)
Working Environment -10°C~+55°C / 10%~90%RH / 86~106kpa
Dimension
(W×D×H)
Mini 1U, 325mm×250mm×55mm
Weight 1.25KG (without HDD)
